9" Fanuc CNC Controls A61L Monitor Series

Product Description

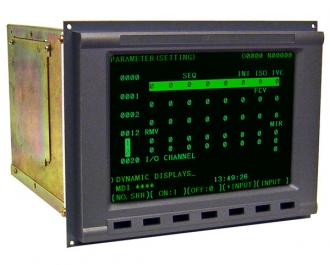

If you need a drop-in replacement display for your A61L-0001-0071 Fanuc Monitor, look no further.  The QES1508 Fanuc A61L Monitor Series - Fanuc CNC Control Monitor Series is a high performance, 8.4 inch Active Matrix TFT LCD monitor whose rugged, open frame chassis is designed to drop into the mounting holes of the original Fanuc monitors, making it unnecessary to replace the original Fanuc CRT chassis.  The video input of the QES1508 A61L Monitor Series accepts TTL video signals used in 9 inch shop floor terminal control consoles for the original A61L-0001-0071 Fanuc Monitor with no need for signal adapters of any sort.  This unit has been optimized to operate at Fanuc timing but also operates with a variety of other TTL legacy monitor timing.

With contrast ratios of 600:1 and brightness of 450cd/m2, the rugged QES1508 Fanuc A61L Series color LCD TFT display is not only an excellent replacement monitor for your legacy Fanuc CRT display.  Standard features such as multi-language on-screen display, DDC1/2B Plug and Play make this an ideal replacement for your industrial TTL legacy products.

Equivalent Model Numbers: A61L00010071

Media & Downloads

• Fanuc A61L Series Replacement Monitor Outline Drawing
• Fanuc A61L Series Replacement Monitor 3-D Drawing
• Fanuc CNC Control A61L Monitor Series Brochure

Direct Replacements

The list below represents legacy products that can be replaced with this product.
